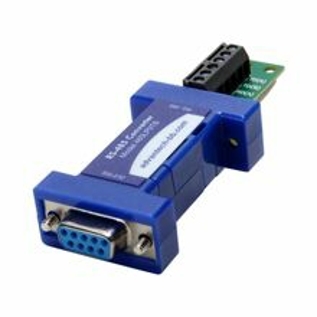

BB-485LP9TB
Powered from RS-232 handshake lines — no power supply neededExtend RS-232 signals to 1.2km (4,000 ft)Automatic Send Data Control - no software drivers neededCommunicate at baud rates to 115.2 kbps (maximum)Optional external powering
Model 485LP9TB is a port-powered, two-channel converter. It converts TD and RD RS-232 lines to balanced RS-485 signals. The unit can be powered from the RS-232 handshake lines, DTR and RTS. If port-powering the unit, one of these handshake lines must be asserted (high) in order to power the unit (See Table 1). DTR must be... More
